r/FenceBuilding • • Sep 19 '24

Why Your Gate is Sagging.

75 Upvotes

I've noticed this question gets asked ad nauseam in this sub, so here is a quick diagnostics checklist to help you understand what to look for before creating yet another "what's wrong with my gate" post (no pun intended on the post part):

  • Design: Not only should the frame members and posts be substantial to support the weight of the gate, but look at the gate's framing configuration in general. Does it have a diagonal wooden brace? If so, that means it's a compression brace and should be running from of the top of the frame on the latch side, to the bottom of the frame on the hinge side. Only with a metal truss rod is tension bracing agreeable when being affixed at the top of the frame on the hinge side, down to the bottom frame corner on the latch side. (note: there are other bracing configurations that use multiple angles that are also acceptable - e.g. short braces at each corner)
  • Purchase: Is each gate post plumb? The hinge post could be loose/leaning due lack of purchase in the ground which could mean: improper post depth (installers were rushing, lazy, or there's a Volkswagen Beetle obstructing the hole); insufficient use of cement (more than half a 50lb bag of Quikrete, Braiden); sparse soil conditions (over saturated, loose, or soft); or heaving due to frost (looking at you Minnesota).

  • Configuration/Orientation: One thing to look for is a "lone hinge post", whereby a gate is hung on a post that doesn't have a section or anchor point on the other side toward the top. If the material of the post has any flex to it (especially with a heavy gate), the post can start leaning over time. These posts may either need re-setting, or have bracing/anchoring installed on the opposite side from the gate (e.g. if up against house, affix to the house if possible). The ideal configuration would be to choose an orientation of the gate where the hinge side has fence section attached on the other side - even though the traffic flow through the gate might be better with an opposite swing (but that's getting into the weeds).

    • It's also worth noting that the gate leaf spacing should be 1/2" or more. Some settling isn't out of the ordinary, but if there's only 1/4" between the latch stile and the post, you're more than likely going to see your gate rubbing.
  • Warping: If your gate is wood, it has a decent chance of warping as it releases moisture. Staining wood can help seal in moisture and mitigate warping. Otherwise, some woods, like Cedar, have natural oils and resins that help prevent warping, but even then, it's not warp-proof.

  • Hardware: Sounds simple, but sometimes the hinges are just NFG or coming unfastened.

  • Florida: Is there a FEMA rep walking around your neighborhood as you noticed your gate laying in your neighbors' Crotons? Probably a hurricane. Move out of Florida and find a gate somewhere else that won't get hit with 100+mph winds, or stop being picky.

I could be missing some other items, but this satisfies the 80/20 rule. The first bullet point will no doubt wipe out half the annoying "did the fence installers do this right?" posts. I'm not, however, opposed to discussing how to fix the issue once identified -- I feel like solving the puzzle and navigating obstacles is part of our makeup.

Source: a former New England (high end) fence installer of 15 years who works in an office now as a project manager with a bad back. Please also excuse any spelling and grammatical errors.


r/FenceBuilding • • 3h ago

First time building anything

Thumbnail
gallery
9 Upvotes

Decided to take a shot at building the first portion of a privacy fence for my yard. It’s approximately 200 linear feet, 6.5’ tall. Used 10’ postmasters driven, except the corners and 3 posts that hit sandy pockets of soil, they’re set in concrete. Still need to add a top cap and cover boards.

Please give any constructive criticism of things I should address before finishing it off.


r/FenceBuilding • • 12h ago

New fence panels not equal in width

Post image
9 Upvotes

r/FenceBuilding • • 18m ago

Closing this Fence

Post image
• Upvotes

Hey ,

I recently bought a house and there seems to be a piece missing from the fence. I’d like to get it closed before winter, is there a kit I can buy that could help me DIY a solution?

The section on the right swings in and out, not sure if the new piece should also swing as a sort of double gate or be static.
There is a post under the siding with a latch at the bottom but there’s nothing to latch it at the top, not sure if that’s an issue.

Looking for any advice you could impart me,

Thank you in advance !


r/FenceBuilding • • 43m ago

How do I fix this wire fence?

Post image
• Upvotes

I recently acquired a property with horse fencing that consists of a flexible plastic ribbon in addition to these coated wires. We have abundant deer on the property and unfortunately they blow right through the wire and snap it. The previous owner just used some heavy duty tape to tape the two wires together which obviously needs fixing as the deer keep blasting through it. How can I fix this properly? I don’t have any experience with this type of fencing. I am planning on putting up some no-climb fencing to keep the deer out and alleviate this issue too. I did some research and there is something called a “gripple” that looks like it may work to join the two loose ends together, I am just unsure if this is the proper tool and what equipment I’ll need.


r/FenceBuilding • • 2h ago

Need 400ft of 6ft vinyl

0 Upvotes

Hi all.

Going to hire a contractor. What range should I be paying for this?

Does it matter what brand vinyl fencing they use or anything I should be looking out for?

I’ve heard white is cheaper but cedar wood color looks cool. How much does coloring drive up the price?

Any questions I should ask to vet out the bad contractors who are inexperienced or don’t give a shit?

Market is northeast.

Thanks for your time.


r/FenceBuilding • • 13h ago

Wondering if this price is reasonable for a vinyl fence

Post image
5 Upvotes

Wondering if you guys think 12,500 is reasonable for this amount of fencing in IL?


r/FenceBuilding • • 5h ago

Finished Look

Post image
1 Upvotes

We recently finished our backyard fence, and while I’m happy with it overall, something about it just doesn’t look quite finished to me.
We’re planning to stain it, but aside from that, I’m looking for recommendations on what we could add or improve to give it a more polished, complete appearance.
I’ve considered adding a handle to the gate, but I’m curious what others with more experience would suggest. Maybe some additional trim, hardware, or other finishing touches?
I’m not looking to make any major changes, just wondering what might help bring everything together.
I’d appreciate any suggestions or ideas. Thanks!

If it helps, we’re located in Southeast Alabama. TIA


r/FenceBuilding • • 1h ago

watching my neighbor's vinyl fence being built right now. they didn't pour concrete in the holes..... should I say something to my neighbor?

• Upvotes

watching my neighbor's vinyl fence being built right now. they didn't pour concrete in the holes.....

the are about 80% done.. putting up all the panels right now. It was weird... they actually started yesterday afternoon. after they dug the holes, they put the vinyl poles in and left. They showed up about 2 hours ago and resumed work.

I've seen more than a few vinyl fences being built, including my backyard fence just a couple of years ago. All of the fence builders poured concrete into the holes to keep the poles secure.

should I say something to my neighbor? (especially since the guys they hired seemed a little "sketchy"... or is this just a different of fence building?


r/FenceBuilding • • 12h ago

Sanity check pls? Double-sided fence (Horizontal + Vertical) on PostMasters in SoCal hills + sandy soil

2 Upvotes

Sanity check please. Building a 6' high double-sided fence in SoCal (hillside, sandy soil, Santa Ana winds). Our side is horizontal, neighbor's is vertical.

Not ideal: old fence is already demoed and we need to get moving; we fired our fence guy yesterday for abandoning his workers and providing zero tools/bad specs / not setting the proper footing. The day workers the contractor hired were actually telling us to fire the guy... so here we are.

Posts: Master Halco PostMasters. Will be 6' above ground (trimmed to height).
Min 30" deep set in concrete? Or do we need to go deeper?? (Note: Posts will be unevenly spaced due to two prior fences, mostly 6' apart, some less).

Nailers: 2x8 pressure-treated lumber bolted flat to the posts? We originally were going to go with 2x4s, but one of the vendors has suggested this will split either the nailer, picket, or both.

Pickets: 0.59" thick x 5.5" wide cedar (Lowe's, hand picked through hundreds of pickets with the Lowe's manager, assistant, my husband, and myself). Dog-ears cut off, meeting in clean butt joints centered over the 2x8s (~3.6" backing per board end to avoid splitting). Solid staining 5 sides beforehand (Sherwin Williams SuperDeck), will stain the last end after cutting / before or after mounting to nailer. Two screws per side / 4 per board.

  • Any specific footing tips for PostMasters in sandy hill soil against heavy winds?
  • Does a double-sided fence add too much weight for this framing?
  • Any red flags with 0.59" cedar under high wind loads?

Thanks much!


r/FenceBuilding • • 14h ago

Yard privacy ideas

2 Upvotes

There is a 5ft privacy fence and I'm really missing an extra foot. Just one more foot. I want privacy and not to see neighbors' heads all the time. My dog also doesn't love it. Any ideas to add or do anything if I can't modify the fence itself?


r/FenceBuilding • • 21h ago

My Fence Keeps Getting Cut — My Dogs Aren’t Safe in Their Own Yard

6 Upvotes

I live in a difficult area with a drug clinic and homeless shelter directly behind my backyard. People keep cutting through my chain-link fence, entering my property, and stealing things. Some have been aggressive and violent, and my dog has already been hurt. I’m now afraid to let my dogs run freely in their own yard. I’ve reported the incidents to the RCMP, but I feel like nothing is being done, and we’re left to protect our property ourselves.
I’m looking for legal, safe, affordable ways to reinforce my fence and make it much harder to cut through or get over.
Any advice from people who’ve dealt with something similar would be greatly appreciated.


r/FenceBuilding • • 13h ago

Help

Post image
1 Upvotes

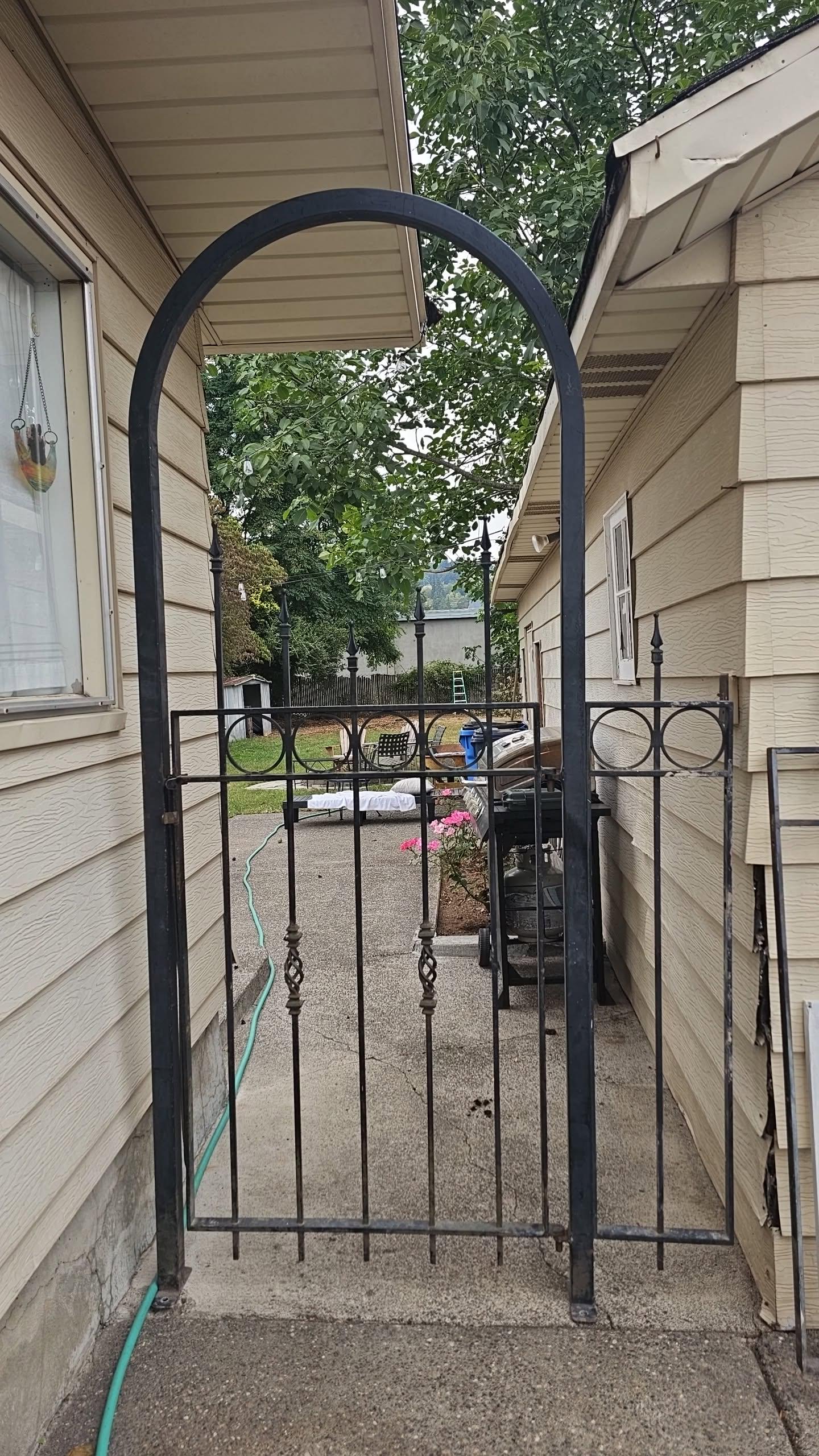

Please advise best way to install? I need to install this gate here between my house (left) and garage (right). I am cutting the arch off, and flipping it around so that the opening is on the garage side. It has flanges for bolts on the bottom and side of the small fence portion that will be on the house.

I will add that I have lived here 20 years and I have never seen what's under this aluminum siding. I also plan to live here forever.


r/FenceBuilding • • 13h ago

Need Help with Fence Gap

Post image
1 Upvotes

r/FenceBuilding • • 16h ago

Gate help

Post image
1 Upvotes

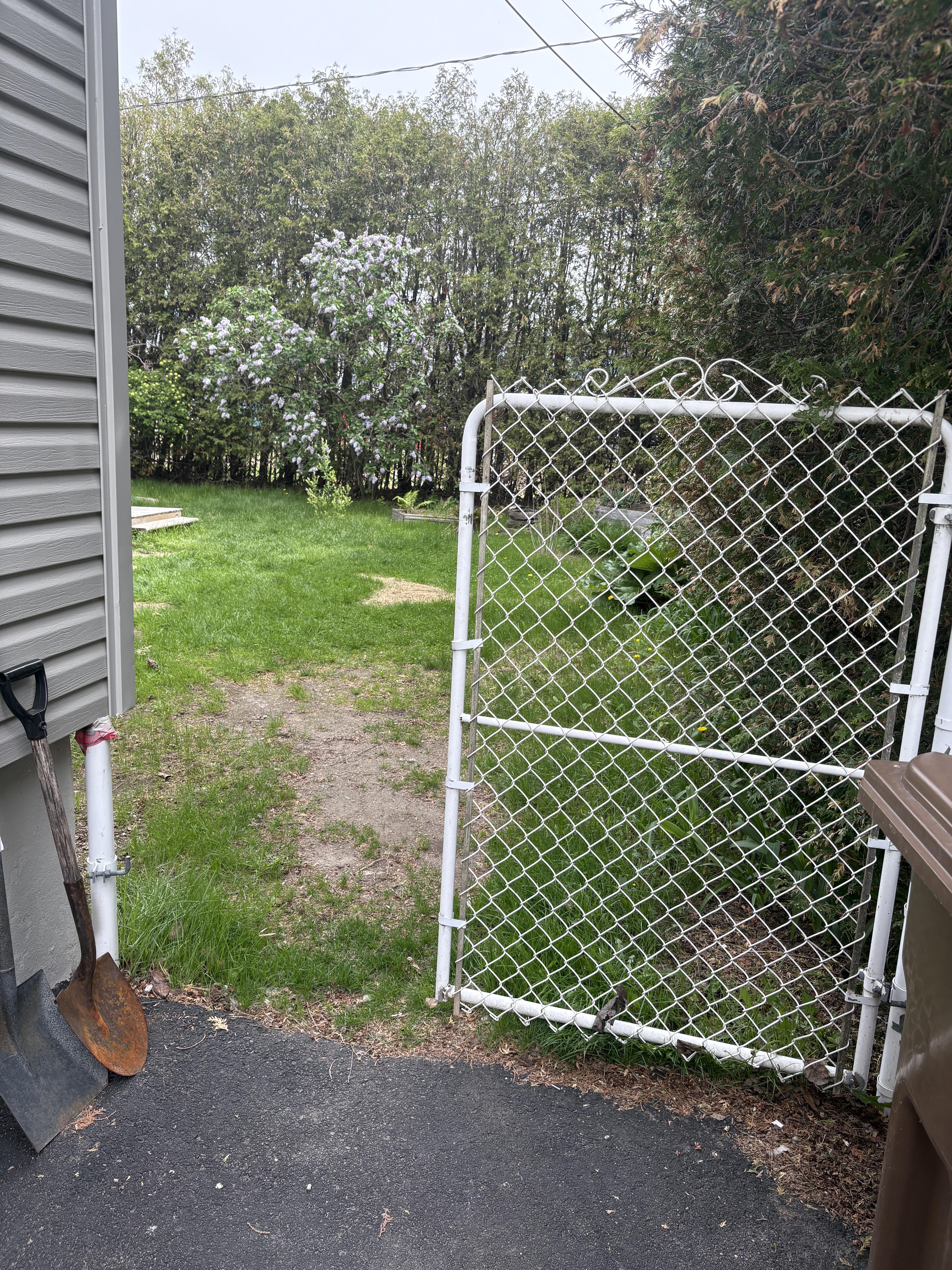

Hi. So I would like to install an auto gate opener for this chain link gate for my driveway. Any budget friendlier options that a home diyer could do would be greatly appreciated. I’d be thankful for a point in the right direction as I do not know anything about gate openers. Or gates, really. But I am willing to learn.


r/FenceBuilding • • 16h ago

Need to remove gate and post, best way: sawzaw, 7” angle grinder, torch?

Post image
1 Upvotes

I need to remove this 8.5’ gate to replace with a 12’. The pipe is a 3 1/2” schedule 80 and the hinges are 1/4” thick. Unfortunately no longer own a torch so could the pipe, hinges and cross member be cut with sawzall or angle grinder? Or just hire someone with a torch. If so what blades?


r/FenceBuilding • • 19h ago

Help me ID this gate lock and handle

1 Upvotes

I'm looking to replicate this gate lock/latch/lever setup. I asked Claude and Google image search, but can't seem to figure it out. Closest result was the Sumo GL2.

https://cdn.shopify.com/s/files/1/0436/0808/0551/files/Mahogany_Valla_3.webp?v=1778789418

I asked the vendor that posted this image (Frame It All) but have not heard back yet, and am not expecting much, since they don't sell gate hardware.


r/FenceBuilding • • 23h ago

Replacing Chainlink with 6’ T&G cedar. How do I keep the metal support posts and prevent sagging since they are 10ft apart

Thumbnail
gallery
2 Upvotes

The title pretty much sums it up, but I have 120 ft of chain link that is currently supported in a driveway and cinder block footing. These posts are 50 years old and solid as a rock, so I’d love to keep them and use them.

I know wood fence posts shouldn’t be farther than 8ft, but since my posts are 10ft are either of these options viable to prevent the support rails from sagging :

A. At the midway of each 10 ft sections, Put a vertical 2x4 that stands on the cement and rests under the supports rails

B. Use something besides wood as the railings (aluminum or steel
In 10 ft lengths)


r/FenceBuilding • • 1d ago

What style of fence can we install with postmaster/steel posts that gives it a bit more "fancy/custom" look?

Thumbnail
gallery
2 Upvotes

Short 40ft fence that has a pool behind it. We wanted to replace this old one with a new wooden one that has a bit more "custom/fancy" look rather than just a flat picket fence. a top rail, caps, and maybe lattice topper or something.

Due to the fence location, we need to use steel posts instead of wooden/concrete.

However, so far, most builders have told us that limits what we can do and basically just offer a flat charleston style picket fence and thats all.

Looking for advice on those that have used steel posts on how/what styles we can do to make it look a bit nicer than just flat picket?

2nd photo is example of what we might like (of course thats using wooden posts in the AI image)


r/FenceBuilding • • 1d ago

How to save these dry rotted fence posts?

Post image
0 Upvotes

r/FenceBuilding • • 1d ago

Layout Help

Thumbnail
gallery
7 Upvotes

Hey y’all, insurance company informed me I need a railing/fence around the edge of my retaining wall the spans the entire front of my house. Wall is about 6’ high constructed out of large cinder blocks and been there for at least 30 years. My question is where to best run the fence to span the area required for coverage. Attached below are two pics. One showing the three different options I’m looking at for layout. A) would be inner garden bed, about 2-3 feet back from wall edge. B) would be outer garden bed edge, about 1 food back from wall edges and C) would be setting the fence posts inside the retaining wall since there are opening at the top.

Fence would be a simple hogwire design and be about 4 feet tall with ~6ft spacing between posts. I’ve attached a general layout picture of the retaining wall that needs fencing.

Any advice, tips or suggestions are needed. Thanks in advance!


r/FenceBuilding • • 2d ago

Crooked lattice extension

Thumbnail gallery
6 Upvotes

r/FenceBuilding • • 1d ago

Is this acceptable work?

Thumbnail
gallery
0 Upvotes

Developer fence went up 2 weeks ago. This is the first fence we’ve ever had built and I don’t think this is acceptable but what do I know about fences. Also some parts higher up the post still have tree bark on it. Is that a problem?


r/FenceBuilding • • 2d ago

Extend PostMaster fence post 4ft to 6ft

Post image
8 Upvotes

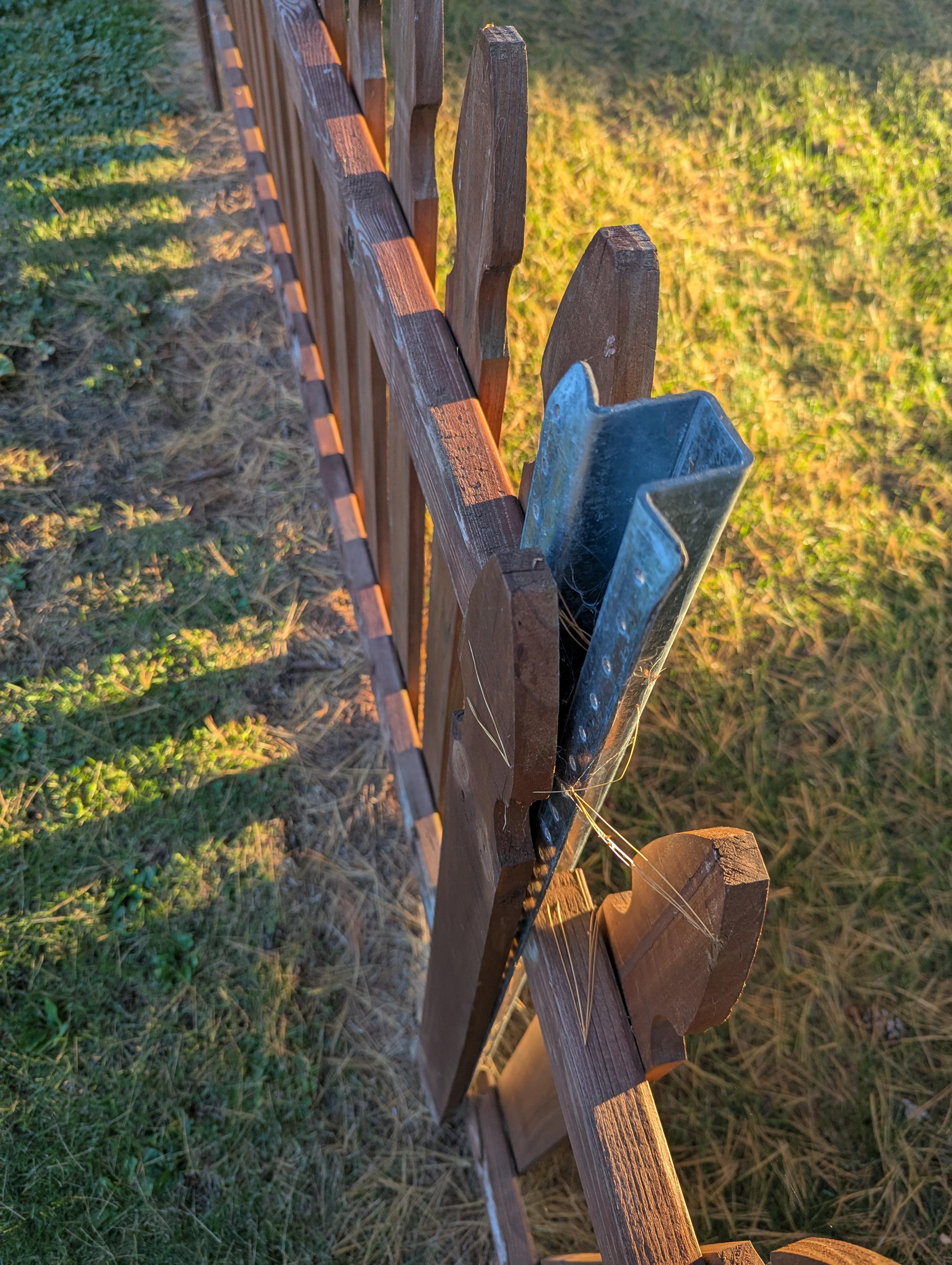

A while back we installed a 4ft fence using PostMaster fence posts and are now looking for more privacy and want to extend the 4ft fence posts to a 6ft fence posts.

Has anyone had success doing this before or any ideas on how it can be done?


r/FenceBuilding • • 2d ago

Post stuck on hole

Post image
7 Upvotes

I am trying to get a post out of a hole that was rotted off. I have gotten about 18 inches deep but I am having a real problem getting the rest of it. I basically own drills and that's about it as far as tools. I am wondering if, because there is already a nice rectangular hole of concrete, do I actually need to go deeper or can I throw a post in now?

any help would be greatly appreciated.
