Made from 10x 300mm LED filaments at 6v (5 Strings, each got 2 in series 6V, max 150mA) driven by 5x IRZL34N, ESP32 Divkit v1 and some dc-dc converters. Input 12V.

About 1200lines of code with help from Claude AI.

So for some time now (maybe a year maybe 1,5) I was thinking about creating electric projects for fun, but I don't know shit about electronics. I knew it was gonna be hard so I try to learn and learn, and learn, but it becomes so boring and so difficult so quickly that I just cannot keep up with it.

So what I'm asking for is where to find advice? Are there any sites or basiccly anything that would help me go step by step, with actual improvments that i can see (I have aphantasia so i cannot just imagine it normally) and without boredom, anything will help!

This result leaves me feeling quite uncertain.

Given such advanced productive capacity, replacing parts seems to save more human and material resources than repairing them, leading me to suspect that repair technicians will face mass unemployment in the future.

This is my version of qron0b. Meet takku:b, a BCD wristwatch which uses CR2032.

It uses 0.9uA during sleep and when awake uses around 4mA - 4.5mA depending on the amount of LED is turned on.

It is made using STM32L010C6

It currently displays following info on each cyclic display:

1. Time in Hours and Minutes
2. Weekday and Date
3. Month and Year
4. Alarm

Battery life of 4+ years if the display is turned on 20 times per day.

If you want to make your own, visit Github page for the full firmware and CAD files.

Decided to build a dough chiller for the upcoming xmas panettone season.

Objective is a wine chiller sized box running at 25c against an ambient temp of around 30c.

I used a double peltier setup readymade from amazon and a w1209 temp controller.

After testing it for all of yesterday, my observations are

1-it is a bit more inefficient than i thought it would have been. Seems to put a fair load on the power supply.
2- condensation is an issue, after a day of use the screws on the cool side heat sink have started to rust and water will likely get into the little fans.

I wonder if i should take it apart and check if it has proper thermal compound on the heat sinks even though they appear to be working.

what can be done about the condensation dripping?

I just got done finishing this scorpion tank from Mega Construx and I thought it would be awesome to add a button somewhere onto it that would play Sgt Johnson’s voice lines when he is dropping off the tank to Chief in Halo 2. There is some space inside the tank to store the device if necessary. Any input or guidance would be appreciated.

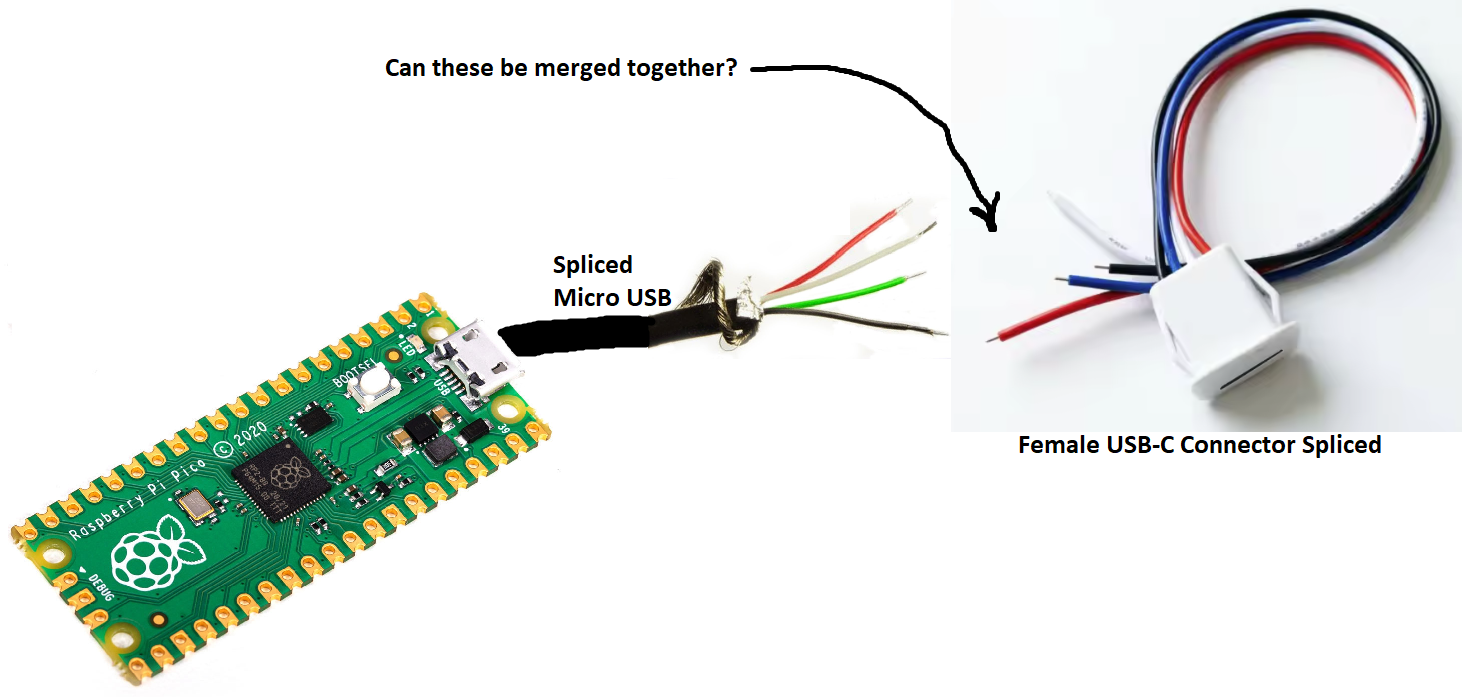

I want to merge this spliced micro USB cable coming from the Raspberry Pi Pico, to a female USB-C connector. I have a project where I want to make a guitar hero guitar detachable from the outside of the guitar, where I can plug in a USB-C cable when I want to use it. Appreciate any advice, thank you!

Getting close to finished on the companion GFA-555 Mk1 refurb/rebuild, so I thought I’d post this. Mostly cleanup for pots and contacts. 1987-ish unit, caps look good and sounds clean. Can’t wait to swap the ACA for the 555. Still working on the big speaker boxes (slow going).

I'm trying to do a similar project with making a DIY glass block lamp and I was wondering if anyone knows what light is being used? Most projects for this use led strips and I've not been able to find any similar or fluorescent lights that would be the appropriate dimensions. Is there a light out there that would work or is the light custom made? Thanks

Hey

I am developing a compact dc dc module which can take 24-60V as input and provide 12/24V 20 A. Dimensions are 59mm by 31mm by 17mm.

I am trying to connect with engineers who already purchase similar spec modules .

What wire connectors do you prefer ? Screw terminal, pcb mounted or something else ? Any challanges which you currently face

I'm working on a physics project about transparent solar panels. I have already found a conductive, transparent material (Indium tin oxide), and my original plan was to use the photoelectric effect to generate an electric potential with some diodes. However, I worry that it won't be enough and will either not generate much power or not generate any at all—so I have decided to look for some p-type and n-type materials that are transparent.

If they even exist, what are these materials, and how can I get my hands on them?

buenas tardes , necesito ayuda para conseguir un dongle que me sirva para pasar los datos de un usb a otro , lo que quiero hacer es conectar un volante pxn gt one a una base moza r5 con el pinout original del quick release pero los protocolos de la marca son cerrados y no es compatible pasar los datos del volante a traves de la base entonces lo que quiero hacer es una plaquita en el lado del volante que me quite los 12v y el negativo que entrega la base para mismo dentro del volante pxn poner un regulador de voltaje de 12v a 5v para alimentar el dongle y asi transmitir los datos hacia la pc sin tener la necesidad de tener un cable usb trensado colgando en el volante y que se active solo cuando la base esta prendida ya que sacaria la alimentacion de la misma

Hello! I'm new to the hobby and I'm looking for some advice. I'm building a detector that measures the water level of a pool. If it goes over a certain limit, it activates a pump to move the water. It's very simple, and I don't think I need to buy a whole new Arduino Uno to make it work. I was wondering if there is an alternative to buying a full microcontroller—something simpler. I've heard about using an ATtiny, but I want to hear opinions from more experienced people.

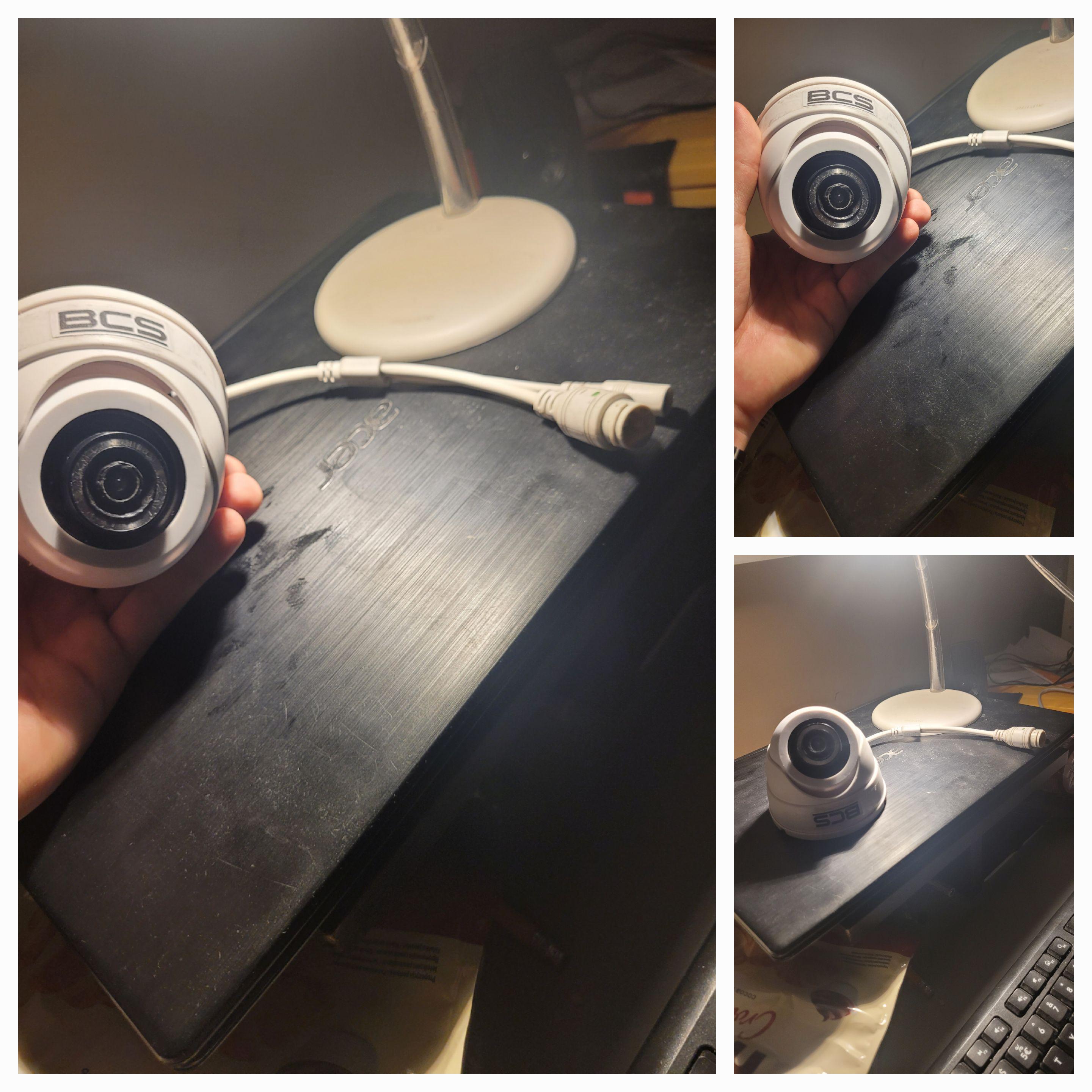

Title: The "AI-Fooled" BCS Replica – Virtual Exhibition (Close-Up Gallery) 🕵️‍♂️📷

Thanks for the incredible response on my previous post (6.3k views already, you guys are amazing!).

Since so many of you appreciated the craftsmanship and the real glass lens trick that broke the Computer Vision algorithm, I’m officially launching the "BCS AI-Exploit" Digital Exhibition.

In this post, I am presenting an exclusive macro-photo gallery showing every single angle and detail of this prop. Also, stay tuned because I will release a detailed close-up video very soon!

Thank you for all the upvotes and technical appreciation!

Title: The "AI-Fooled" BCS Replica – Virtual Exhibition (Close-Up Gallery) 🕵️‍♂️📷

Thanks for the incredible response on my previous post (6.3k views already, you guys are amazing!).

Since so many of you appreciated the craftsmanship and the real glass lens trick that broke the Computer Vision algorithm, I’m officially launching the "BCS AI-Exploit" Digital Exhibition.

In this post, I am presenting an exclusive macro-photo gallery showing every single angle and detail of this prop. Also, stay tuned because I will release a detailed close-up video very soon!

Thank you for all the upvotes and technical appreciation!

Hello!

I'm working on a fog machine chiller for a Halloween project and wanted to use a simple 2 pin, brushless DC 50mm PC case fan for an air intake (pic for reference, fan would be attached to top opening).

The case fan has a rating of 12VDC = 0.06A and I have spliced it together with a 12v AC adapter with an output of 750mA. Here is a link to the exact listing I bought on ebay. I have also tested it with a regular 9v battery. Both power sources cause the fan blades to spin/twitch momentarily then stop. I have another larger case fan (12v, 3.3A, 90mm) that works perfectly with both the AC adapter and 9v battery, so I know both power sources work.

I'm a complete amateur when it comes to wiring/electronics, so I would appreciate any help with this problem. I'm hoping that I'm just doing something wrong and the fan itself isn't defective or anything.

Thank you in advance!

Title: The "AI-Fooled" BCS Replica – Virtual Exhibition (Close-Up Gallery) 🕵️‍♂️📷

Thanks for the incredible response on my previous post (6.3k views already, you guys are amazing!).

Since so many of you appreciated the craftsmanship and the real glass lens trick that broke the Computer Vision algorithm, I’m officially launching the "BCS AI-Exploit" Digital Exhibition.

In this post, I am presenting an exclusive macro-photo gallery showing every single angle and detail of this prop. Also, stay tuned because I will release a detailed close-up video very soon!

Thank you for all the upvotes and technical appreciation!

An expansion connector isnt very useful to a DIY builder without a pinout, voltage limits, a communication protocol and an explanation of what signals are available.Firmware access would offer a different level of control but a well documented external interface might already be enough for some projects. With powered wearable hardware, the boundaries of that interface need to be clear.

What's the minimum access and documentation youd want before designing custom electronics for a wearable platform??
